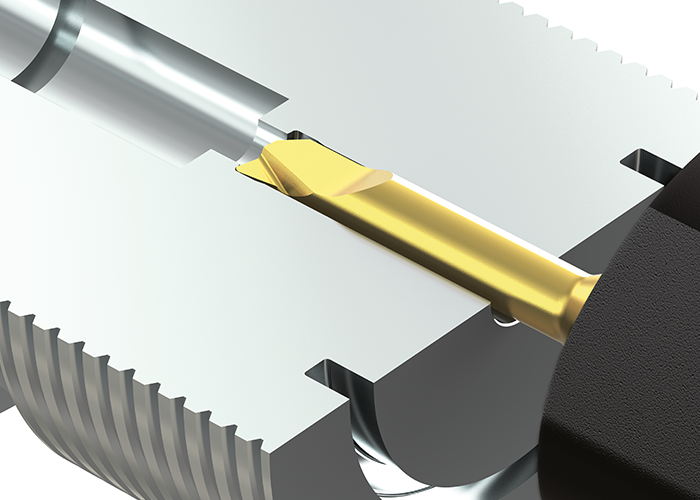

Simturn AX Small Part Machining System
Ideal for small part internal machining from Ø0.3mm
1st choice for micro-machining with high precision & performance.
P
H
M
S
K
N


Browse Simturn AX Inserts
Browse Simturn AX Holders
Advantages
No Compromise
Combines high precision and versatility without compromise
Multi-functional
Inserts availabile for boring, profiling, threading, chamfering & more

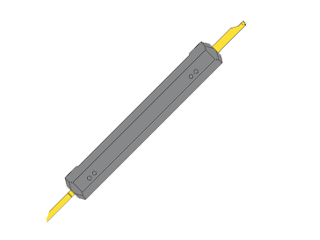

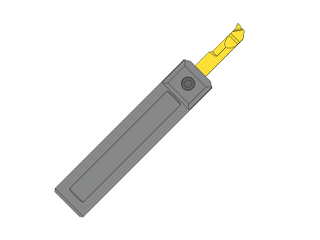

Holder Choice
Holders for different machine tools such as sliding head lathes or multitasking mill-turn machines
Huge Insert Range
More than 3,000 parts available to cover almost all applications
Features
From 0.3mm Bores
High precision internal machining system suitable for 0.3mm bores and above
Through Coolant
Optional through coolant available for increased chip flow and longer tool life
Fast Location Pin
Ensures inserts are clamping quickly and accurately

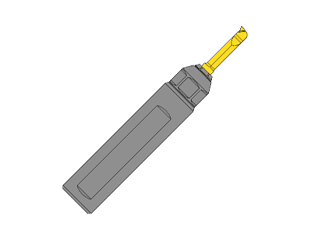

‘ME’ Holders
‘ME’ concentric holders available for the highest precision applications
Applications
Precise Internal Machining from 0.3mm

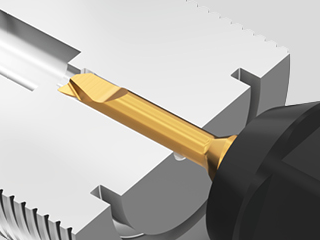

Boring


Boring & Hard Part Turning


Copying & Profiling


Boring


Boring & Chamfering


Chamfering


Back Boring

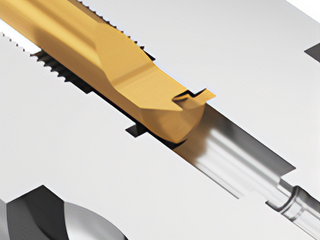

Grooving


Full Radius Grooving


Pre-Part Off & Chamfering

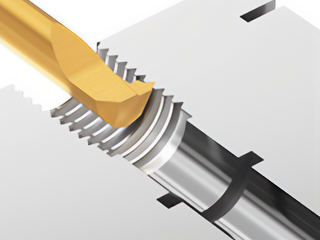

Threading: Metric ISO Partial Profile


Threading: Metric ISO Full Profile


Threading: Trapezoidal Thread & Partial Profile


Threading: NPT & Partial Profile


Threading: UN & Partial Profile


Threading: UNC / UNF & Full Profile


Threading: Whitworth & Full Profile

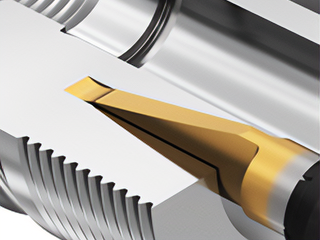

Face Grooving


Simturn AX Custom Tools
Our team of experienced engineers work hand in hand with Simtek to provide custom solutions to suit your application. Special inserts can be provided for any Simtek turning system
Application
Material Suitability
Material | Excellent | Good |
---|---|---|
P
Steel
|
• | • |
H
Hardened Steel
|
• | • |
M
Stainless Steel
|
• | • |
S
HRSA's
|
• | • |
K
Cast Iron
|
• | • |
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Trochoidal Milling
Side Cutting
Slotting
Circular Interpolation
See the benefits to the Simturn AX system
Unique 'ME' concentric clamping tool holders
Example Cutting Data
Ø12mm, 4 Flute Double Core Slotting - Titanium (Ti6Al4V) |
Ø12mm, 4 Flute Double Core Slotting - Stainless Steel (316) |
Ø12mm, 4 Flute Double Core Slotting - Alloy Steel (30 HRC) |
Ø12mm, 5 Flute Corner Rad Side Cutting - Stainless Steel (316) |
|
---|---|---|---|---|
RPM | 1459 | 2255 | 3185 | 2175 |
Feed (mm/min) | 390 | 432 | 624 | 685 |
Vc (m/min) | 55 | 85 | 120 | 82 |
Fz (mm/tooth) | 0.067 | 0.048 | 0.049 | 0.063 |
Depth of Cut (AP) | 12 | 12 | 12 | 18 |
Depth of Cut (AE) | 12 | 12 | 12 | 3.6 |
