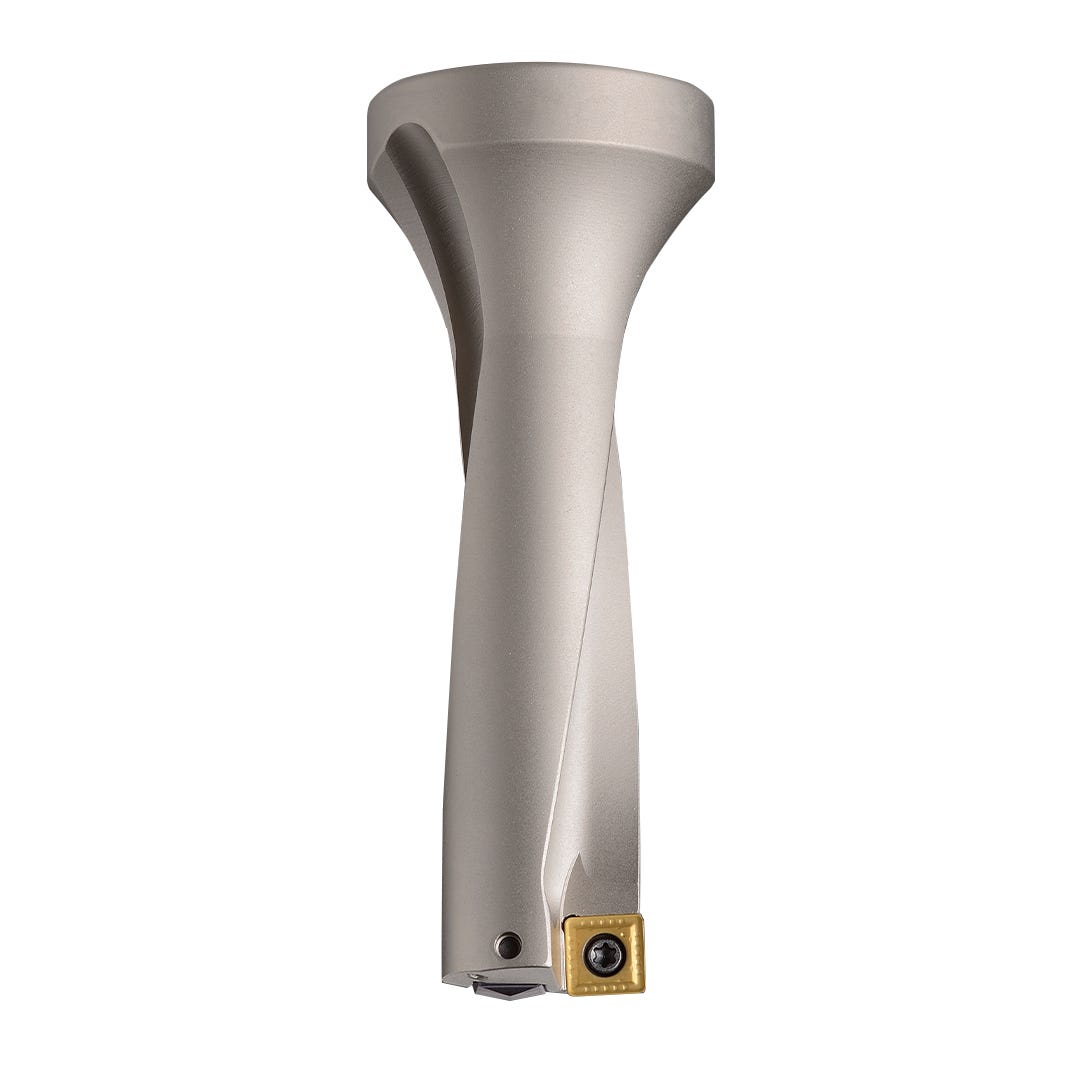

KED King Drill
Indexable Drilling System
The undisputed KING of indexable drilling
Drill the straightest & most accurate holes faster, easier & more reliably, even in the most demanding materials!
Applicable Materials
P
M
S
K
N
Browse the Range
KED King Drill Features
Exceptionally accurate & reliable drilling compared to other indexable drills.
Optimised insert design for inner & outer pockets.
Huge range of diameters from 12-60mm.
2xD, 3xD & 4xD max drill depths.
Low resistance, high penetration & reliability.


KED KING DRILL

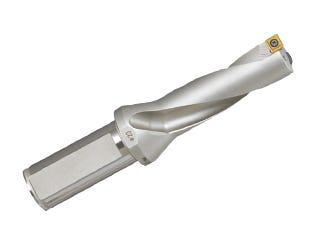

Holder Features
2 Coolant Holes
- Reduced cutting heat
- Improved chip control & tool life
Special Flute Shape
- Increases rigidity of drill body
- Improves chip evacuation
KED KING DRILL

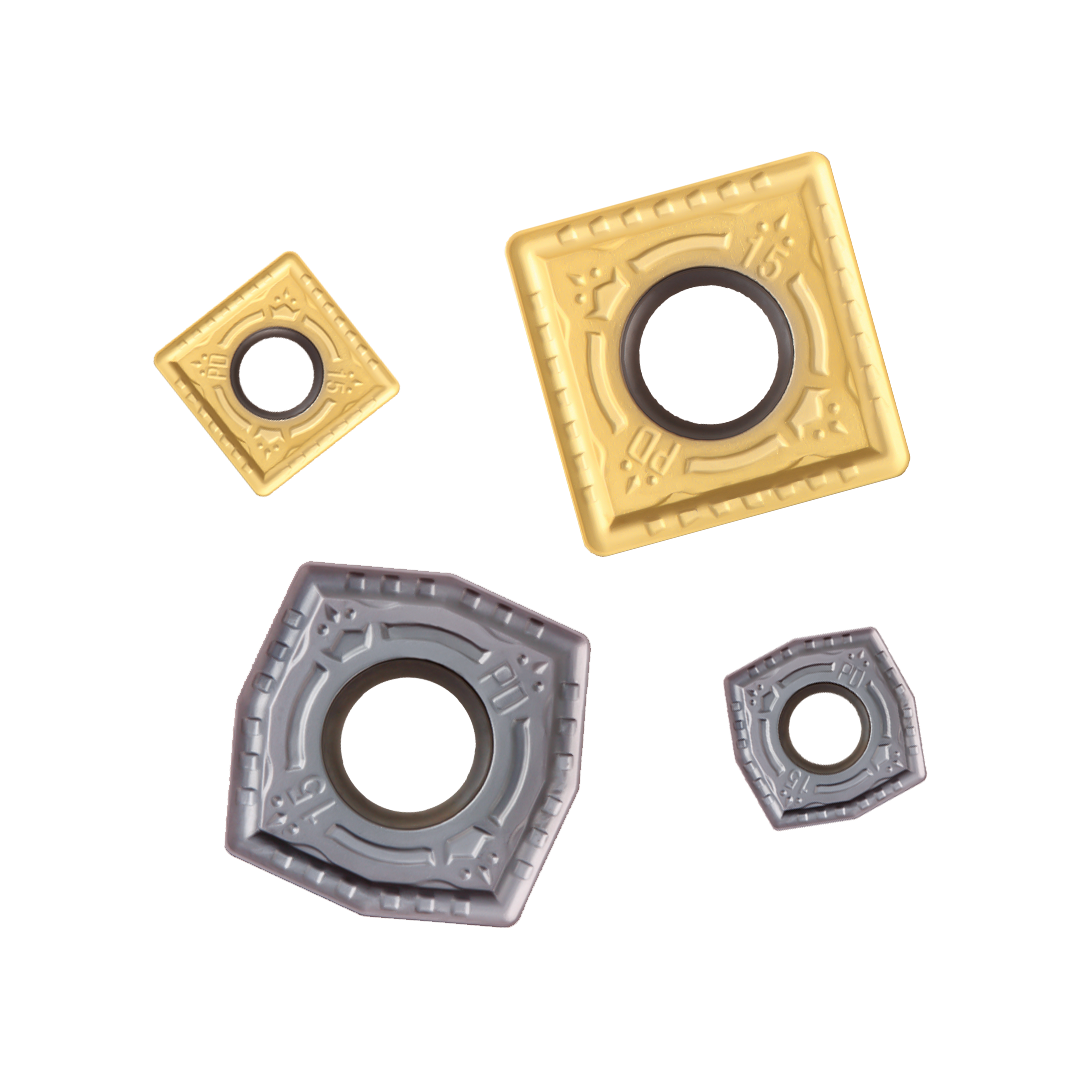

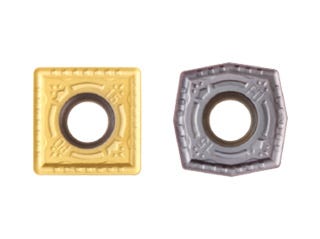

Insert Features
Low Power Requirement
- Exceptionally low cutting resistance
- Enables large diameter or difficult material
drilling on low-powered machines
Unique Outer & Inner Geometry
- Prevents insert wear & drill failure
- Accurate drilling, especially in longer holes

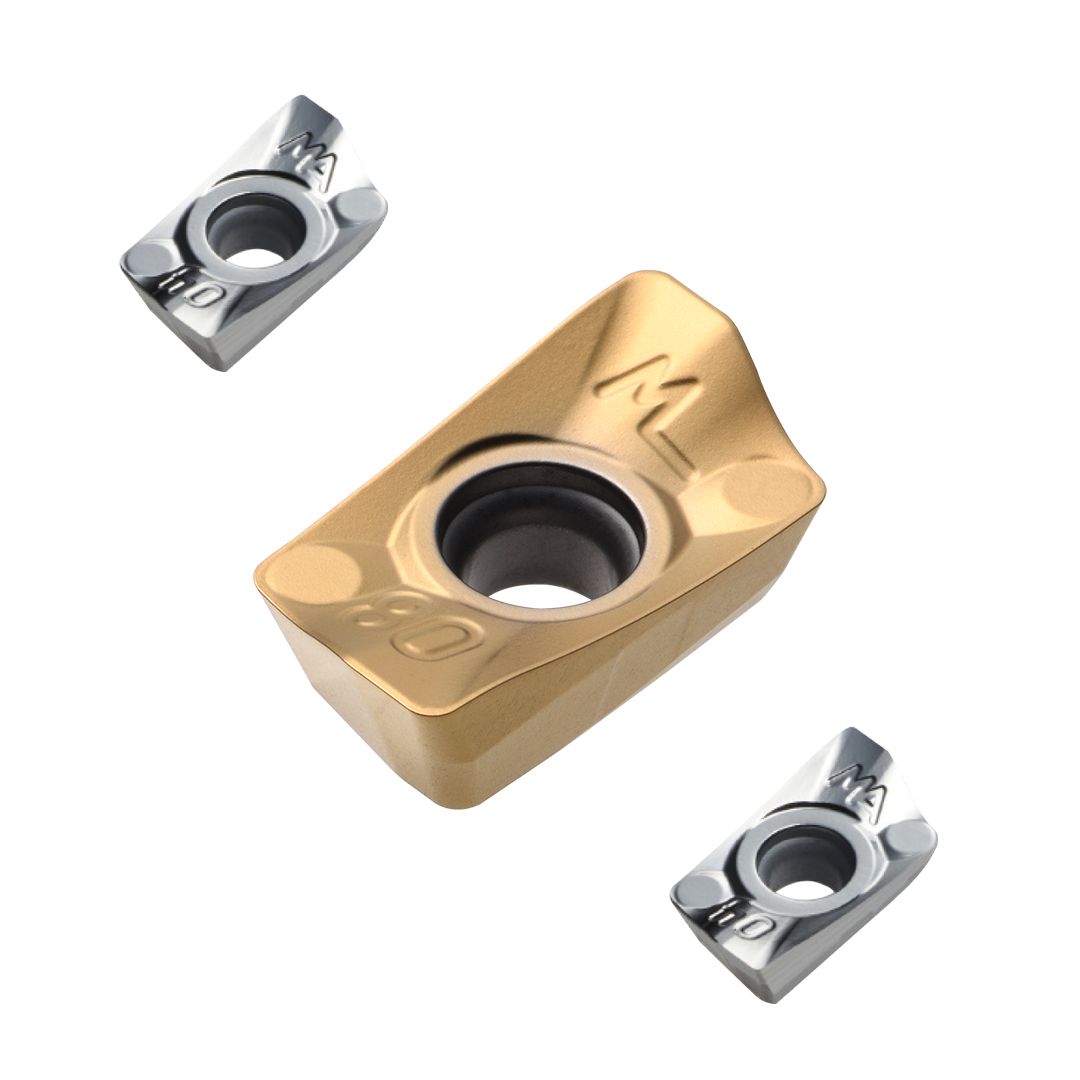

Alpha Mill-X
Insert Designation
The Alpha Mill ADKT inserts feature a unique Alpha Curve geometry with a 15° positive rake for smooth chip flow and low cutting resistance across a wide range of materials.
Inserts are available in 10mm or 17mm.
Grade Guide
Grade | Insert | Materials | Features & Benefits |
---|---|---|---|
PC3700* | SPMT | Steel <45 HRC |
1st choice grade for steel drilling |
PC5300 | SPMT/XOMT | Steel <45 HRC
Stainless Steel
HRSA's
Cast Iron
|
Best selling universal grade for stable machining |
PC5335 | SPMT/XOMT | Steel <45 HRC
Stainless Steel
HRSA's
Cast Iron
| Tough universal grade for stable machining |
PC6510* | SPMT | Cast Iron |
1st choice grade for cast iron drilling |
KEP8545 | SPMT/XOMT | Stainless Steel
HRSA's |
Premium wear resistant grade for stainless steel & HRSA's |
UPC845 | SPMT/XOMT | Stainless Steel
HRSA's |
Low speed resistant grade for stainless steel & HRSA's |
H01 | SPET/XOET | Non-Ferrous (Aluminium) |
Uncoated inserts for dedicated alumnium & non-ferrous drilling |
*These grades are only available in the peripheral insert type. Please pair with a PC5300 grade central insert.
Application
Material Suitability
Material | Excellent | Good |
---|---|---|
P
Steel
|
• | • |
H
Hardened Steel
|
• | • |
M
Stainless Steel
|
• | • |
S
HRSA's
|
• | • |
K
Cast Iron
|
• | • |
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Face Milling
Trochoidal Milling
Side Cutting
Slotting
Circular Interpolation
