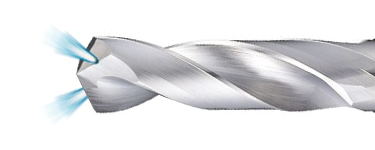

Aluminium & Non-Ferrous Carbide Drills

Aluminium & Non-Ferrous Carbide Drills

Carbide drills designed for ultra high performance drilling of Non-ferrous materials such as Aluminium, Copper, Brass & Bronze.

Filter By arrow
carrat-down

8 Items

Sort By
carrat-down
sort-descending
Uncoated Carbide Stub Alu-Drill for Aluminium - DCA40 Series (Cutwel Pro)
Uncoated Carbide Stub Alu-Drill for Aluminium - DCA40 Series (Cutwel Pro)

The Cutwel-Pro DCA40 Stub Length Carbide Alu-Drills are designed for 3xD performance drilling of Aluminium & Copper. These drills are self centering and the 40 degree helix with deep flute pockets aid...

  • Micrograin Carbide Substrate
  • ALU Geometry with 40 degree Helix
  • For Performance Drilling on Aluminium, Non-Ferrous Alloys & Copper
  • 3xD Stub Length
  • Deep Flute Pockets to Aid Chip Flow
  • Polished Flutes Prevent Built Up Edge
  • Self Centering with 118 degree Drill Point

Size

Diameter (mm)2 - 19.5
Overall Length (mm)38 - 131
Flute Length (mm)12 - 66
Shank (mm)2 - 19.5

From £8.28 £6.90

View Products
Uncoated Carbide Jobber Alu-Drill for Aluminium - DCA60 Series (Cutwel Pro)
Uncoated Carbide Jobber Alu-Drill for Aluminium - DCA60 Series (Cutwel Pro)

The Cutwel-Pro DCA60 Jobber Length Carbide Alu-Drills are designed for 5xD performance drilling of Aluminium & Copper. These drills are self centering and the 40 degree helix with deep flute pockets a...

  • Micrograin Carbide Substrate
  • ALU Geometry with 40 degree Helix
  • For Performance Drilling on Aluminium, Non-Ferrous Alloys & Copper
  • 5xD Jobber Length
  • Deep Flute Pockets to Aid Chip Flow
  • Polished Flutes Prevent Built Up Edge
  • Self Centering with 118 degree Drill Point

Size

Diameter (mm)2 - 20
Overall Length (mm)49 - 205
Flute Length (mm)24 - 140
Shank (mm)2 - 20

From £12.61 £10.51

View Products
TX Uncoated Carbide Through Coolant Jobber Drill for Close Tolerance Holes - B411 Series (Kennametal)
TX Uncoated Carbide Through Coolant Jobber Drill for Close Tolerance Holes - B411 Series (Kennametal)

TX drills are best suited for high quality, close tolerance holes where surface finish is of paramount importance. The x-shaped, free cutting 130° point design are made for grey cast iron, nodular ir...

  • Designed for high quality, close tolerance holes where surface finish is of paramount importance
  • The x-shaped, free cutting 130° point design are made for grey cast iron, nodular iron and non-ferrous materials
  • Four-margin land design can help achieve tight diamter tolerances
  • Uncoated finish helps prevent built up edge in non-ferrous applications
  • Jobber length (5xD) with through coolant capabilities
  • Long tool life in abrasive materials such as cast iron and aluminium die-cast alloys

Size

Diameter (mm)3.2 - 25
Overall Length (mm)66 - 184
Flute Length (mm)23 - 98
Shank (mm)6 - 25

From £90.91 £75.76

View Products
Uncoated Carbide Through Coolant Stub Alu Dream Drill for Aluminium - D5432 Series (YG-1)
Uncoated Carbide Through Coolant Stub Alu Dream Drill for Aluminium - D5432 Series (YG-1)

The YG-1 D5432 Stub Length Carbide Alu-Dream Drills are designed for 3xD ultra high performance drilling of Aluminium & Copper. These through coolant drills are self centering and give exceptional sur...

  • Micrograin Carbide Substrate
  • ALU-Dream Drill for Ultra High Performance Drilling
  • Ideal for Drilling Aluminium, Non-Ferrous Alloys & Copper
  • Ultra High Feed Rates & Excellent Chip Control
  • Exceptional Surface Finish Due to Sharp Drill Point & Lapped Flutes
  • 3xD Stub Length
  • Reaming Not Required
  • Through Coolant
  • Self Centering with 118 degree Drill Point

Size

Diameter (mm)3 - 20
Overall Length (mm)62 - 131
Flute Length (mm)20 - 79
Shank (mm)6 - 20

From £38.18 £31.82

View Products
Uncoated Carbide Through Coolant Jobber Alu Dream Drill for Aluminium - D5433 Series (YG-1)
Uncoated Carbide Through Coolant Jobber Alu Dream Drill for Aluminium - D5433 Series (YG-1)

The YG-1 D5433 Jobber Length Carbide Alu-Dream Drills are designed for 5xD ultra high performance drilling of Aluminium & Copper. These through coolant drills are self centering and give exceptional s...

  • Micrograin Carbide Substrate
  • ALU-Dream Drill for Ultra High Performance Drilling
  • Ideal for Drilling Aluminium, Non-Ferrous Alloys & Copper
  • Ultra High Feed Rates & Excellent Chip Control
  • Exceptional Surface Finish Due to Sharp Drill Point & Lapped Flutes
  • 5xD Jobber Length
  • Reaming Not Required
  • Through Coolant
  • Self Centering with 118 degree Drill Point

Size

Diameter (mm)3 - 20
Overall Length (mm)66 - 153
Flute Length (mm)28 - 101
Shank (mm)6 - 20

From £49.37 £41.14

View Products
Uncoated Carbide Micro Alu K-Drill for Aluminium - 22.0360 Series (Karnasch)
Uncoated Carbide Micro Alu K-Drill for Aluminium - 22.0360 Series (Karnasch)

The Karnasch 22.0360 Micro ALU K-Drills are designed for high performance small diameter drilling of Aluminium, Bronze & Copper. These drills are self centering and have polished flutes to prevent bui...

  • Micrograin Carbide Substrate
  • Micro Drill Starting From Just 0.5mm Diameter
  • ALU K-Drill for Small Diameter Drilling of Aluminium, Copper & Composites
  • Polished Flutes Prevent Built Up Edge
  • Self Centering with 130 degree Drill Point
  • Always use with a Tool Holder with 5 Micron (or less) Run-Out

Size

Diameter (mm)0.5 - 3
Overall Length (mm)39 - 39
Flute Length (mm)6.5 - 16.5
Shank (mm)3 - 3

From £25.43 £21.19

View Products
Uncoated Carbide Through Coolant Long Length Alu Dream Drill for Aluminium - D5434 Series (YG-1)
Uncoated Carbide Through Coolant Long Length Alu Dream Drill for Aluminium - D5434 Series (YG-1)

The YG-1 D5434 Long Length Carbide Alu-Dream Drills are designed for 8xD ultra high performance drilling of Aluminium & Copper. These through coolant drills are self centering and give exceptional sur...

  • Micrograin Carbide Substrate
  • ALU-Dream Drill for Ultra High Performance Drilling
  • Ideal for Drilling Aluminium, Non-Ferrous Alloys & Copper
  • Ultra High Feed Rates & Excellent Chip Control
  • Exceptional Surface Finish Due to Sharp Drill Point & Lapped Flutes
  • 8xD Long Length
  • Reaming Not Required
  • Through Coolant
  • Self Centering with 118 degree Drill Point

Size

Diameter (mm)3 - 14
Overall Length (mm)72 - 178
Flute Length (mm)34 - 133
Shank (mm)6 - 14

From £98.53 £82.11

View Products
Uncoated Carbide Through Coolant Extra Long Alu K-Drill for Aluminium - 22.0392 Series (Karnasch)
Uncoated Carbide Through Coolant Extra Long Alu K-Drill for Aluminium - 22.0392 Series (Karnasch)

The Karnasch 22.0392 Extra Long Length MQL Carbide K-Drills are designed for ...

  • Micrograin Carbide Substrate
  • MQL Type <40xD Extra Long ALU K-Drill
  • Deep Hole Drilling of Aluminium, Copper & Composites
  • Lapped Flutes Prevent Built Up Edge
  • Through Coolant
  • Self Centering with 137 degree Drill Point
  • Recommended to be used with High Pressure Coolant (50+BAR)
  • Always use with a Tool Holder with 5 Micron (or less) Run-Out

Size

Diameter (mm)1 - 9.8
Overall Length (mm)55 - 380
Flute Length (mm)8 - 330
Shank (mm)4 - 10

From £144.11 £120.09

View Products
