Used for clamping tools with a cylindrical shank. Offers incredibly high performance and can be used with standard collets.

Perfect for 5-axis-machining. With a high runout accuracy and short chamfer, this chuck has a 3° taper at the top.

An optimised design with high rigidity and dampening vibrations, giving more protection to machines, spindles and tools.

For the highest machining capacity in high-speed manufacturing. Provides higher accuracy than SK (DIN) holders.

Extreme slim design for finish machining and confined difficult to reach applications

Extreme slim design for finish machining and confined difficult to reach applications.

Increased machining capacity due to higher spindle speed, higher feed and larger cutting depths.

Increased machining capacity due to higher spindle speed, higher feed and larger cutting depths

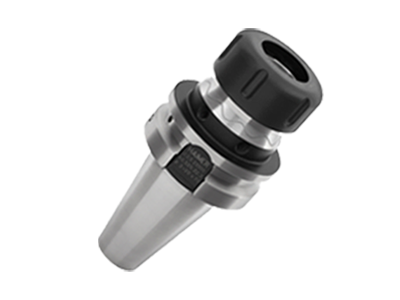

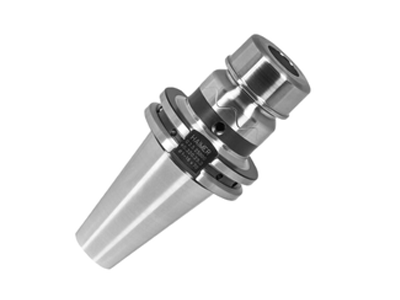

For clamping tools with a cylindrical shank balanced to 25,000RPM 2.5. With various styles, gauge lengths & nut diameters.

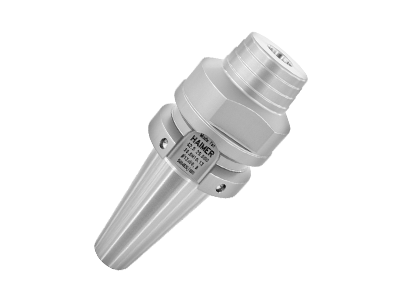

High peformance chucks offering increased tool life for drilling, reaming and finishing applications.

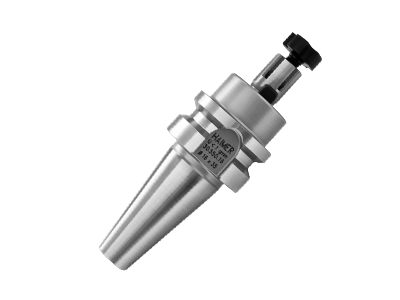

Used for holding face milling cutters securely in place. Standard or combination types available

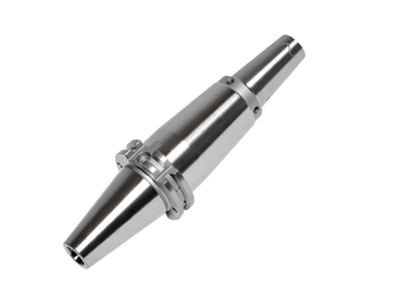

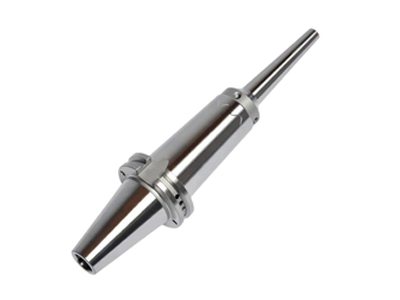

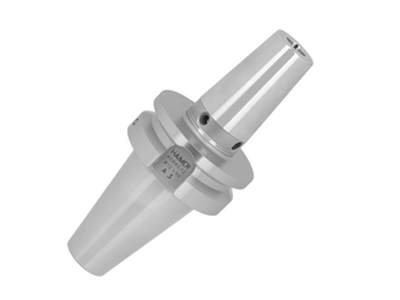

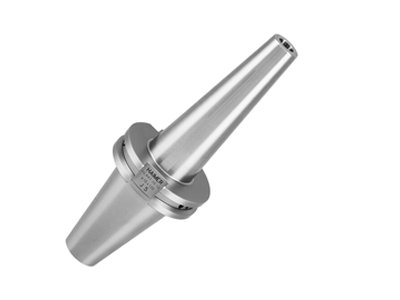

Offers a high performance clamping solution available in standard, slim, and power mini profile for high speed machining.

For clamping tools with a cylindrical shank balanced to 25,000RPM 2.5. With various styles, gauge lengths & nut diameters.

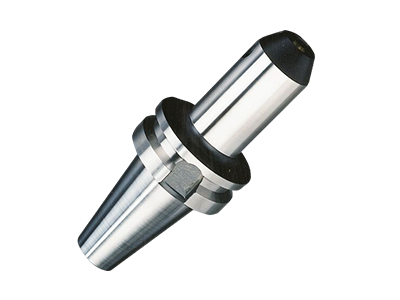

Designed for use with tools that have a weldon (flat shank), providing better rigidity than ER collet chucks.

High peformance chucks offering increased tool life for drilling, reaming and finishing applications.

Used for holding face milling cutters securely in place. Standard or combination types available.

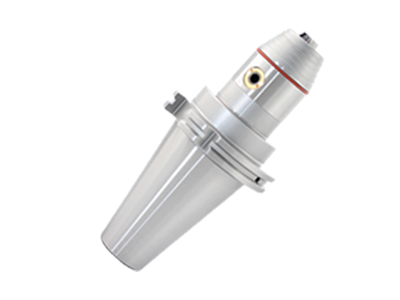

Used for clamping tools with a cylindrical shank. For high speed drilling applications balanced to
25,000RPM 2.5.

Offers a high performance clamping solution available in standard, slim, and power mini profile for high speed machining.

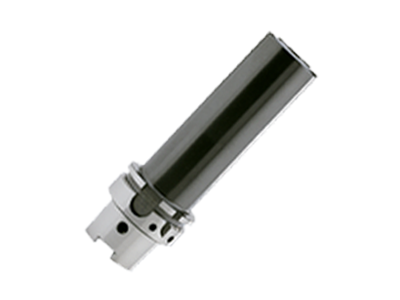

Designed for use with tools that have a morse taper shank. With thread or tang, they allow for precise machining operations.

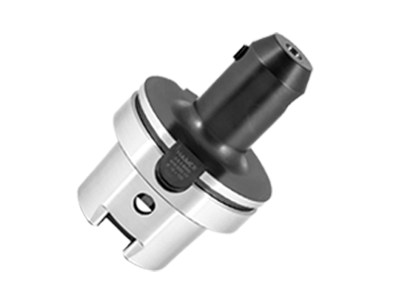

For side lock style clamping of whistle notch shank tooling, balanced at 8,000RPM G6.3.

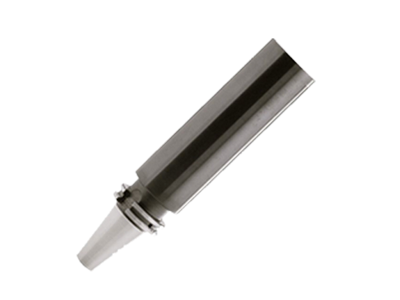

For manufacturing special tools in your factory. All functional surfaces fine machined.

Quality Wins.

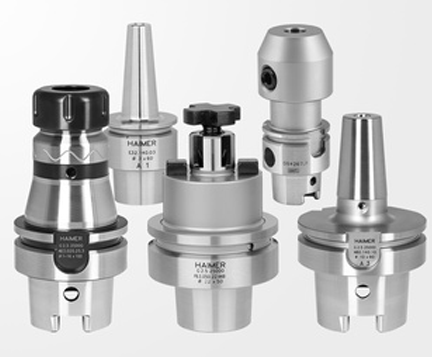

Haimer are the experts in the field of machining. Their mission is to provide customers with a holistic approach to everyday machining with end-to-end solutions.

By choosing Haimer, you can expect to find high-precision products for your production as well as excellent reliability and incredible performance on your applications.
