NC Mill Hardened Steel
Cut through alloy, tool & hardened steel <60HRC at speed
Designed for machining high-hardened materials, dry cutting, and high speed cutting with exceptional workpiece finish.
P
H
M
K
Browse the Range

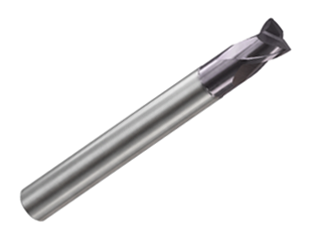

Square End
NC Mill Hardened Steel
2-4 flute square end milling cutters for
performance steel milling.

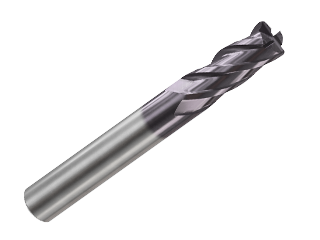

Corner Radius
NC Mill Hardened Steel
Corner radius design for stronger
cutting edges & radiused applications.

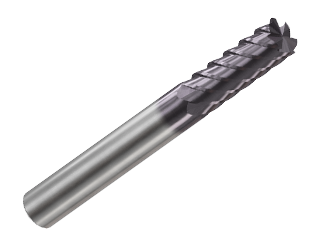

6 Flute (Finisher)
NC Mill Hardened Steel
Provides exceptional surface finish in
profiling operations.

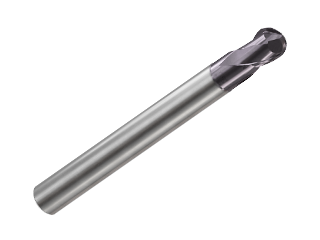

Ball Nose
NC Mill Hardened Steel
Ball nose design ideal for radiused
applications and profiling.
Advantages
Machine up to 60HRC
Tackle high hardness & high temperature machining at speed.
Cost Efficient
Excellent value cutters with great all-round performance on hardened steel.
Tool Life
Benefits from a high-quality nanograin substrate that improves tool life.
Consistency
Consistently delivers an exceptional workpiece finish and boasts high wear resistance.
Features
Z-Coating
Combined with the nanograin substrate, it can machine at high temperatures with ease.
High Speed Cutting
Designed to be run at high speeds,meaning you can complete your job quicker and with an exceptional finish.
Dry Cutting
Dry cutting can increase tool life up to 40%, furthering cost savings.
Market Leader
Manufactured by global market leader of solid milling tools YG-1.
Application
Material Suitability
| Material | Excellent | Good |
|---|---|---|
|
P
Steel
|
• | • |
|
H
Hardened Steel
|
• | • |
|
M
Stainless Steel
|
• | • |
|
S
HRSA's
|
• | • |
|
K
Cast Iron
|
• | • |
|
N
Aluminium & Non-Ferrous
|
• | • |
Possible Machining Methods
Copy Milling
Face Milling
Shoulder Milling
Slotting
Trochoidal Milling
Circular Interpolation
Example Cutting Data*
| Low Carbon Steel HRc20 | Alloy Steel HRc32 | Hardened Steel HRc55 | Stainless Steel 316 | Grey Cast Iron | Inconel | |
|---|---|---|---|---|---|---|
| RPM | 2794 | 2540 | 762 | 1520 | 2030 | 444 |
| Feed (mm/min) | 8940 | 7111 | 1524 | 4256 | 4872 | 889 |
| Diameter | 25 | |||||
| Teeth | 4 | |||||
| Surface Speed (m/min) | 220 | 200 | 60 | 120 | 150 | 35 |
| Feed per Tooth | 0.8 | 0.7 | 0.5 | 0.7 | 0.6 | 0.5 |
| Depth of Cut (AP) | 0.7 | 0.7 | 0.5 | 0.7 | 0.7 | 0.5 |
| Depth of Cut (AE) | 25 | |||||
*Conservative example cutting data given. Tools can be run faster or slower depending on machine capability. Data based on ENMX06 insert.
