Micrometers for Grooves, Splines & Keyways

Micrometers for Grooves, Splines & Keyways

Digital or vernier spine micrometers from Mitutoyo which feature small diameter anvils and spindles for measuring splined shafts, slots and keyways. Available with optional IP65 protection.

Filter By arrow
carrat-down

18 Items

Sort By
carrat-down
sort-descending
Point Micrometer - 3230 Series (Insize)
Point Micrometer - 3230 Series (Insize)

The Insize 3230 Point micrometer for measuring the web thickness of drills, small grooves and keyways. With ratchet stop and carbide measuring faces create a durable, ware resistant tool from machine ...

  • Measure the web thickness of drills, small grooves and keyways.
  • Graduation 0.01mm.
  • Ratchet stop.
  • Carbide tips.
  • Supplied With 60° Setting Standards (except 0-25mm).

From £112.78 £93.98

View Products
Imperial Blade Micrometer - 3232 Series (Insize)
Imperial Blade Micrometer - 3232 Series (Insize)

The Insize 3232 Blade micrometer with a non-rotating spindle, for measuring groove diameters of shafts and keyways. The micrometer can be used for quick and accurate measurements which range up to 200...

  • Measure the groove diameter of shafts and keyways.
  • Graduation 0.0001".
  • Non-rotating spindle.
  • Ratchet stop.
  • Setting standards are included (except 0-25mm).

From £204.05 £170.04

View Products
Point Micrometer - 112 Series (Mitutoyo)
Point Micrometer - 112 Series (Mitutoyo)

This vernier point micrometer has a pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard-to-reach features. It is equippd with a ratchet stop to p...

  • Range: up to 100mm
  • Graduation: 0.01mm
  • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
  • The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.
  • Equipped with Ratchet Stop for constant measuring force.

From £146.53 £122.11

View Products
Blade Micrometer - 122 Series (Mitutoyo)
Blade Micrometer - 122 Series (Mitutoyo)

This vernier blade micrometer has blade-shaped anvils and spindles for measuring the groove diameter of shafts, keyways and other hard-to-reach features. It is equippd with a ratchet stop to provide a...

  • Range: up to 300mm/4"
  • Suited to the measurement of low-volume manufactured parts.
  • Easy to use when operating one-handed due to retractable anvil.
  • In the 25 mm measuring range, models are available that offer left or right positioning of the anvil-retraction button.
  • Water resistant to protection level IP54.
  • Greatly improved accuracy: indication error and graduation of 1 μm.
  • Hard-coated crystal: enhanced oil and scratch resistance.
  • Indicator scale is large and easy-to-read.
  • Easily set zero position and adjustable limit markers for GO/±NG testing.
  • Measuring faces: Carbide.

From £222.85 £185.71

View Products

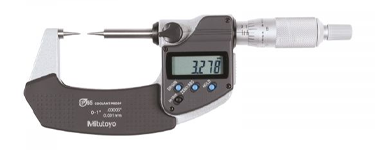

Digimatic IP65 Digital Point Micrometer - 342 Series (Mitutoyo)
Digimatic IP65 Digital Point Micrometer - 342 Series (Mitutoyo)

This digital point micrometer has a pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard-to-reach features. It is equippd with a ratchet stop to p...

  • Range: up to 4" (101.6mm)
  • Resolution:.00005" (0.001mm)
  • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
  • The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.
  • Equipped with Ratchet Stop for constant measuring force.

From £515.93 £429.94

View Products
Spline Micrometer - 3233 Series (Insize)
Spline Micrometer - 3233 Series (Insize)

The 3233 Insize Spline Micrometer is for measuring splined shafts, slots and keyways. Measuring from a range of 0-175mm the Spline Micrometer has carbide measuring faces, a ratchet stop and a 0.1mm gr...

  • Measure splined shafts, slots and keyways.
  • Graduation 0.01mm.
  • Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards (except 0-25)

From £112.78 £93.98

View Products
IP54 Digital Point Micrometer - 3530 Series (Insize)
IP54 Digital Point Micrometer - 3530 Series (Insize)

The Insize 3530 Digital Point micrometer for measuring the web thickness of drills, small grooves and keyways. With ratchet stop and carbide measuring faces create a durable, ware resistant tool from ...

  • Measure the web thickness of drills, small grooves and keyways.
  • Resolution 0.001mm/0.00005".
  • IP54 waterproof.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Data output.
  • LR44 battery, automatic power off.
  • Carbide tips.
  • Ratchet stop.
  • Supplied with setting standards (except 0-25mm/0-1").
  • Optional accessary: data output cable (code7302-SPC6).

From £294.36 £245.30

View Products
Insize Digital Blade Micrometer (3532 Series (Insize)
Insize Digital Blade Micrometer (3532 Series (Insize)

The Insize 3532 Digital Point micrometer for measuring diameters of shafts and keyways. With ratchet stop and non-rotating spindle guaranteeing accurate repeated measurements. With optonal data output...

  • Measure the groove diameter of shafts and keyways.
  • Resolution 0.001mm/0.00005".
  • Non-rotating spindle.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Data output.
  • LR44 battery, automatic power off.
  • Ratchet stop.
  • Supplied with setting standards (except 0-25mm/0-1").
  • Optional accessary: data output cable (code7302-SPC6).

From £420.38 £350.32

View Products
Metric Blade Micrometer - 3232 Series (Insize)
Metric Blade Micrometer - 3232 Series (Insize)

The Insize 3232 Blade micrometer with a non-rotating spindle, for measuring groove diameters of shafts and keyways. The micrometer can be used for quick and accurate measurements which range up to 200...

  • Measure the groove diameter of shafts and keyways.
  • Graduation 0.01mm.
  • Non-rotating spindle.
  • Ratchet stop.
  • Setting standards are included (except 0-25mm).

From £183.79 £153.16

View Products
Digital Spline Micrometers - 3533 Series (Insize)
Digital Spline Micrometers - 3533 Series (Insize)

The Insize 3233 Digital Spline micrometer for measuring splined shafts, slots and keyways. With ratchet stop and carbide measuring faces create a durable, ware resistant tool which allows for repeatab...

  • Measure splined shafts, slots and keyways.
  • Resolution 0.001mm/0.00005".
  • IP54 dust/waterproof.
  • Button function: on/off, set, mm/inch, ABS/INC, data output.
  • Data output.
  • LR44 battery, automatic power off.
  • Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards (except 0-25mm/0-1").
  • Optional accessary: data output cable (code7302-SPC6).

From £336.42 £280.35

View Products
Caliper Type Micrometers - 3238 Series (Insize)
Caliper Type Micrometers - 3238 Series (Insize)
  • Graduation 0.01mm.
  • Non-rotating spindle.
  • Ratchet stop.
  • Carbide measuring faces.
  • Supplied with setting standards (except 0-25mm).

From £196.26 £163.55

View Products
Point Micrometer - 112 Series (Mitutoyo)
Point Micrometer - 112 Series (Mitutoyo)

This vernier micrometer has a pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways and other hard-to-reach features. It is equipped with a ratchet stop for const...

  • Range: up to 100mm.
  • Accuracy: up to ±3µm
  • Graduation: 0.01mm
  • Made by Mitutoyo - Market leader in the engineering measuring tool sector.
  • Pointed spindle and anvil for measuring the web thickness of drills, small grooves, keyways, and other hard-to-reach features.
  • The measuring points (carbide tipped) have, approximately, a 0.3 mm radius.
  • Equipped with Ratchet Stop for constant measuring force.

From £146.53 £122.11

View Products
Crimp Height Micrometer - 112 Series (Mitutoyo)
Crimp Height Micrometer - 112 Series (Mitutoyo)

This vernier crimp height micrometer is designed to measure the height of crimp contacts. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo are a market leader in the m...

  • Range: 0-25mm
  • Graduation: 0.01mm
  • Accuracy: ±3µm
  • Measures the height of crimp contacts.
  • Equipped with Ratchet Stop for constant measuring force.

From £204.54 £170.45

View Products
Groove Micrometer - 146 Series (Mitutoyo)
Groove Micrometer - 146 Series (Mitutoyo)

This vernier groove micrometer has a flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Mitutoyo are a market leader in the measuring sector, providing the h...

  • Range: up to 100mm (4")
  • Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes.
  • Two-directional ratchet stop.

From £295.10 £245.92

View Products
Non-Rotating Spindle Groove Micrometer - 146 Series (Mitutoyo)
Non-Rotating Spindle Groove Micrometer - 146 Series (Mitutoyo)

This non-rotating spindle groove micrometer has a flanged spindle and anvil for measuring width and location of grooves inside bores and tubes. Mitutoyo are a market leader in the measuring sector, pr...

  • Range: up to 100mm (4")
  • Flanged spindle and anvil for measuring width and location of grooves inside bores and tubes.
  • Two-directional ratchet stop.

From £409.08 £340.90

View Products
Digimatic Blade Digital Micrometer - 422 Series (Mitutoyo)
Digimatic Blade Digital Micrometer - 422 Series (Mitutoyo)

This digital blade micrometer have blade-shaped anvils and spindles for measuring the groove diameter of shafts, keyways and other hard-to-reach features. It is equippd with a ratchet stop to provide ...

  • Range: up to 4" (101.6mm)
  • Resolution: .00005" (0.001mm)
  • The anvil and spindle are blade-shaped for measuring the groove diameter of shafts, keyways, and other hard-to-reach features.
  • Equipped with Ratchet Stop for constant measuring force.
  • Four types of blade shape are available (see diagrams below). Types C and D have carbide-tipped measuring faces.

From £820.19 £683.49

View Products
Spline Micrometer - 111 Series (Mitutoyo)
Spline Micrometer - 111 Series (Mitutoyo)

This digital spline micrometer has small diameter anvils and spindles for measuring splined shafts, slots and keyways. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo...

  • Range: up to 300mm
  • Graduation: 0.01mm
  • The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways.
  • Measuring faces: Carbide.
  • Equipped with Ratchet Stop for constant measuring force.

From £172.99 £144.16

View Products
Digimatic IP65 Digital Spline Micrometer - 331 Series (Mitutoyo)
Digimatic IP65 Digital Spline Micrometer - 331 Series (Mitutoyo)

This digital spline micrometer has small diameter anvils and spindles for measuring splined shafts, slots and keyways. It is equippd with a ratchet stop to provide a constant measuring force. Mitutoyo...

  • Range: up to 4" (101.6mm)
  • Resolution: .00005" (0.001mm)
  • The anvil and spindle are of small diameter for measuring splined shafts, slots, and keyways.
  • Measuring faces: Carbide.
  • Equipped with Ratchet Stop for constant measuring force.

From £528.13 £440.11

View Products
